SPECIALIZED

Sepcial Vehicles (self-propelled)

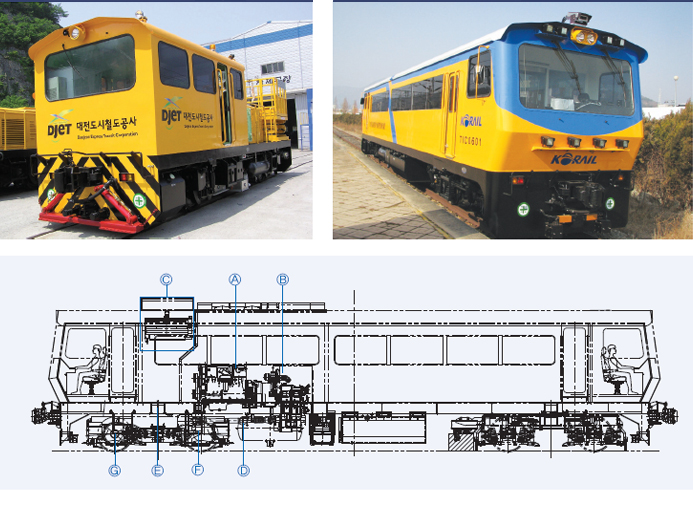

Track Inspection Vehicle

This vehicle is utilizing for the visual safety inspector in high speed by several camera system, inspecting that crack on the rail, clamp status and so on.

Ⓐ Diesel Engine

  • Manufacturer : Cummins Model : QSX 15
  • Rating Power : 600 HP / 2100 rpm

ⒷTransmission

  • Manufacturer : Hitachi-Nico Model : TDCN – 22 – 3001
  • Control method : TCU(Transmission control unit)

Ⓒ Cooling equipment

  • Hydraulic Motor

Ⓓ 1ST Propeller Shaft

  • Deflection Angle : Max. 15° Telescopic Length : Max. 140mm
  • Install Length : 2,042mm

Ⓔ 2nd Propeller Shaft

  • Deflection Angle : Max. 15° Telescopic Length : Max. 140mm
  • Install Length : 850mm

Ⓕ 1ST Reduction Gear

  • Gear Ratio : 36/18 x 45/36 = 2.5

Ⓖ 2nd Reduction Gear

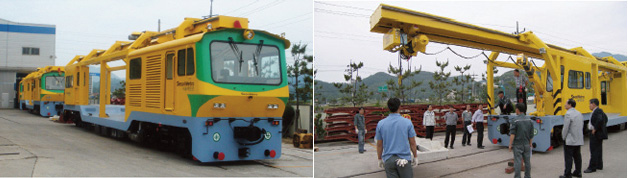

B2S(ballasted to slab) Track Machine

In the construction work for concrete sleeper installation, this track machine is capable of loading and unloading concrete sleepers by using the crane equipped at the roof.

Specifications

Description Specifications
Tare Weight 40 ton
Load Weight 58 ton
Max Speed 120 (km/h)
Power Output 340PS
Axle Load 14.5 ton
Axle Arrangement B - B
Overall Length 15,780 mm
Overall Width 2,800 mm
Overall Height 4,150 mm
Wheel Diameter 860 mm

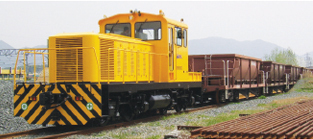

Motor Car

The motor car, which we produce, is mainly used for towing railroad construction equipment, transporting railroad construction material, loading & unloading work.

Specifications



Model SIM-15 SIM-25 SIM-35 SIM-45
Tare Weight 15 ton 25 ton 35 ton 45 ton
Max Speed 120 (km/h) 120 (km/h) 120 (km/h) 120 (km/h)
Power Output 290PS/2,200RPM 430PS/2,000RPM 430PS/2,000RPM 475PS/2,100RPM
Axle Load 7.5 ton 12.5 ton 7.58 ton 11.25 ton
Axle Arrangement B B B or B - B B or B - B
Hauling Capacity 130 TON 300 TON 300 TON 450 TON
Overall Length 6,570 mm 8,500 mm 9,750mm 10,550 mm
Overall Width 2,800 mm 2,800 mm 2,800 mm 2,800 mm
Overall Height 3,300mm 3,300mm 3,553 mm 3,792 mm
Wheel Diameter 860 mm 860 mm 860 mm 860 mm
Hydraulic Crane Order Order Order Order
