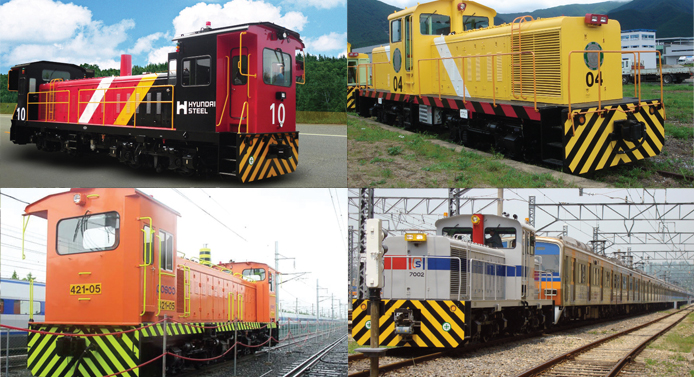

Diesel Locomotive performs hauling and pulling passenger trains or freight wagons for short mainline and shunting area. Drive system is divided into two groups, one is diesel electric locomotive (DC motor) type and the diesel locomotive (hydraulic) type. Especially, as customer’s specific requirements, we improve performance and extend durability period by upgrading product specifications.

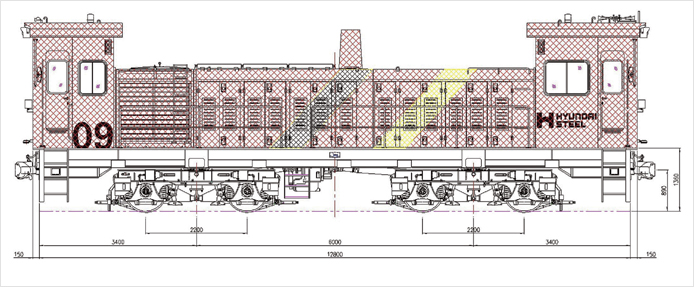

Specifications
| Model | SIL-35 | SIL-45 | SIL-60(Hydraulic driving device) | SIL-75(Hydraulic driving device) | SIL-75(DC Motor Type) | SIL-88(Hydraulic driving device) |
|---|---|---|---|---|---|---|
| Tare Weight | 35 ton | 45 ton | 60 ton | 75 ton | 75 ton | 88 ton |
| Max Speed | 20~30 (km/h) | 20 ~ 30 (km/h) | 20 ~ 30 (km/h) | 20 ~ 30 (km/h) | 70 (km/h) | 80 (km/h) |
| Power Output | 430PS | 475PS | 535PS | 600PS | 800PS | 1,350PS |
| Axle Load | 8.75 ton | 11.25 ton | 15 ton | 18.75 ton | 18.75 ton | 22 ton |
| Axle Arrangement | B or B-B | B-B | B-B | B-B | B-B | B-B |
| Hauling Capacity | 600 TON | 800 TON | 1,100 TON | 1,440 TON | 1,440 TON | 2,700 TON |
| Overall Length | 10,100 mm | 10,100 mm | 11,000 mm | 13,710 mm | 13,710 mm | 14,500 mm |
| Overall Width | 2,900 mm | 2,900 mm | 3,040 mm | 2,948 mm | 3,000 mm | 2,950 mm |
| Overall Height | 3,800 mm | 3,800 mm | 4,112 mm | 4,330 mm | 4,332 mm | 4,250 mm |
| Overall Diameter | 860 mm | 860 mm | 860 mm | 860 mm | 860 mm | 860 mm |
General Specifications
This specifications applies Diesel Hydraulic locomotive’s manufacture, assembly, test, and inspection which is used to haul wagon.
- The General in design, manufacture, test and inspection, delivery, and so on is based on contract.
- Material, manufacture method, test, inspection and etc. that are used in manufacturing vehicles apply KS, JIS, AAR, UIC and etc. standard.
- The warranty of the delivered car based on this specifications is ensured for one year after the completion of the car delivery.
Main Parts
1. Diesel Engine
- Quantity : 1 Set
- Manufacturer and Model : CUMMINS / MTU / CAT
2. Hydrodynamic Torque Converter
- Manufacturer : VOITH or HITACHI
- Type : Power-Shift Transmission depending on Engine Power
3. Cardan shaft
Propeller shaft is device for connecting between power transmission device that transmitted the engine power to transmission, reduction gear, shaft and wheel consequently
4. Driver’s Cabin
Double Cabs at the ends or 1 cab in the middle. It is equipped with master driving control, air-conditioner, window brusher, sun visor, driver’s seat and rear-view mirror.
5. Generator
Operation by Engine connecting with belt, embedded regulator installed at the left side of Fly-Wheel
6. Remote control
| Max. number of control commands | 44 digital(24 via change-over contacts) or 36 digital(20 via change-over contacts) + 10 analogSpecifications |
| Antenna | External, FL 30 or FL 70 (option : offset antenna with 5m cable and BNC connector) |
| EMS category |
4 according to EN 954-1 (The EMS category of the radio control system depends on the respective transmitter) Frequency range 334-338MHz, 400 – 475 MHz1, 865 – 870 MHz, 902 – 928 MHz 1 Not all frequency ranges available |
| Channel increments |
312,5 / 20 / 25 / 50 / 250 kHz |
