Passenger Coach

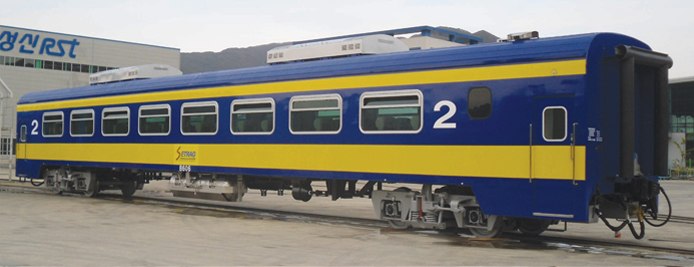

1st Class Passenger Coach

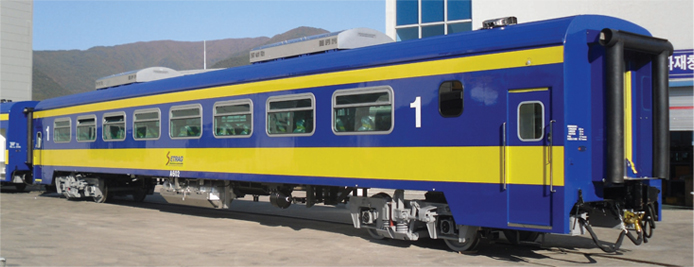

Exterior
The 1st class coach is the most comfortable train for long distance travelers.

Specifications

Description Specifications Description Specifications
 Max. Design speed 120 km/h Width 2,825 mm
 Overall length 22,800 mm Height of car-body 3,815 mm
 Track gauge 1,000 / 1,067 / 1,435 / 1,676mm WheelDiameter 860 mm
 Tare weight About 37 ton Height of coupler Depending on EndUser
 Max. load About 8 ton Passenger seat 51 Seats

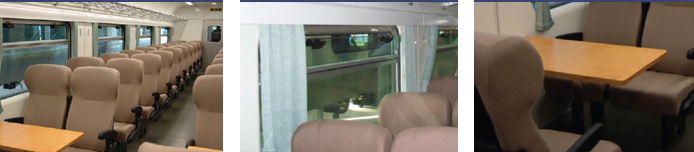

Interior

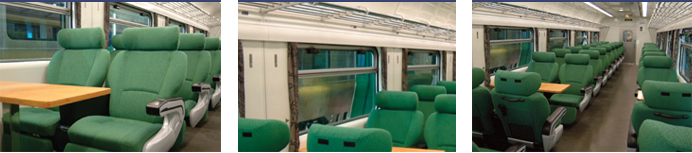

The 1st class coach is the most comfortable train for long distance travelers by adapting HVAC and many convenient equipment such as Hand hanger, Net, Foot pad, Seat table plate, Cup holder, Foot rest, Center Table (Foldable).

2st Class Passenger Coach

Exterior

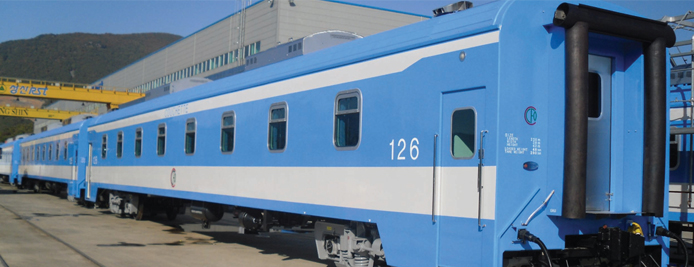

The 2nd class coach is for transporting massive passengers.

Specifications

Description Specifications Description Specifications
 Max. Design speed 120 km/h Width 2,825 mm
 Overall length 22,800 mm Height of car-body 3,815 mm
 Track gauge 1,000 / 1,067 / 1,435 / 1,676mm WheelDiameter 860 mm
 Tare weight About 37 ton Height of coupler Depending on EndUser
 Max. load About 12 ton Passenger seat 80 Seats

 Interior
The 2nd class coach is for transporting massive passengers. by adapting HVAC and many convenient equipment such as Hand hanger, Net, Cup holder and Center Table.

Sleeping Coach

Exterior

The 1st class coach is the most comfortable train for long distance travelers.

Specifications

Description Specifications Description Specifications
 Max. Design speed 120 km/h Width 2,825 mm
 Overall length 22,800 mm Height of car-body 3,815 mm
 Track gauge 1,000 / 1,067 / 1,435 / 1,676mm WheelDiameter 860 mm
 Tare weight About 37 ton Height of coupler Depending on EndUser
 Max. load About 5.5 ton Passenger seat 8 EA

Interior

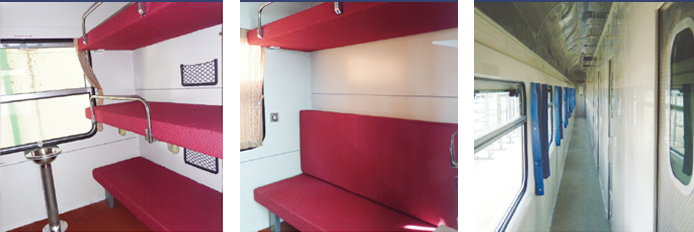

Sleeping Coach is overnight passenger carrier and consists of 1st, 2nd and 3rd level beds. 1st level can be converted to passenge seats.

Restaurant Coach

Exterior

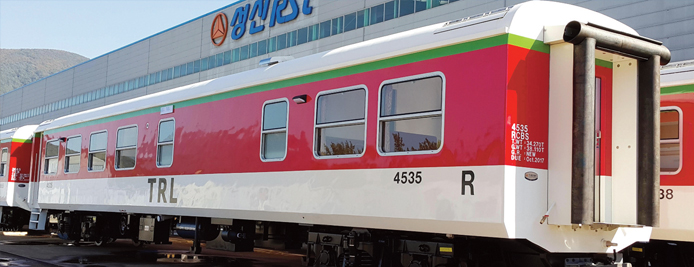

Restaurant Car provides meal service to customer and consists of kitchen in the middle, individual bars, and tables for group.

Specifications

Description Specifications Description Specifications
 Max. Design speed 120 km/h Width 2,825 mm
 Overall length 22,800 mm Height of car-body 3,815 mm
 Track gauge 1,000 / 1,067 / 1,435 / 1,676mm WheelDiameter 860 mm
 Tare weight About 37 ton Height of coupler Depending on EndUser
 Max. load About 16 ton Compartment Restaurant / Bar / Broadcasting room Business room

Interior

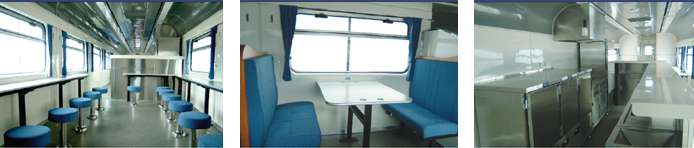

Restaurant Car provides meal service to customer and consists of kitchen in the middle, individual bars, hot plate, microwave, refrigerator and tables for group.

Power Coach

Exterior

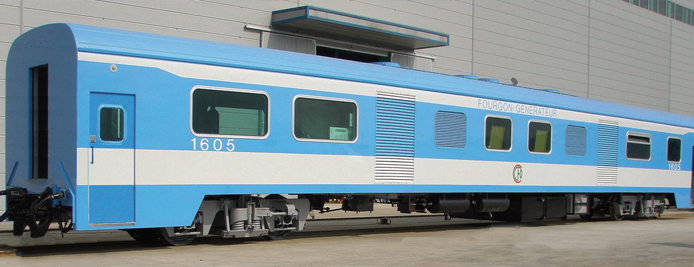

Power generating car consists of Luggage room, Crew’s room and Generator room. There are two synchronized power generator sets to fully generate electricity supplying to passenger coaches.

Specifications

Description Specifications Description Specifications
 Max. Design speed 120 km/h Width 2,825 mm
 Overall length 22,800 mm Height of car-body 3,815 mm
 Track gauge 1,000 / 1,067 / 1,435 / 1,676mm WheelDiameter 860 mm
 Tare weight About 37 ton Height of coupler Depending on EndUser
 Max. load About 8 ton Passenger seat Engine:504HP / 1,500rpm Generator:400KVA

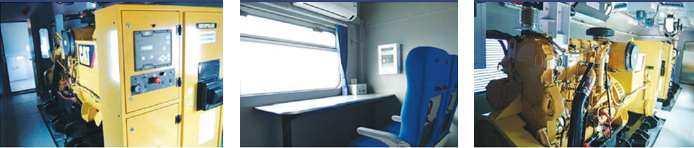

Interior
Restaurant Car provides meal service to customer and consists of kitchen in the middle, individual bars, hot plate, microwave, refrigerator and tables for group.

Diesel Locomotive performs hauling and pulling passenger trains or freight wagons for short mainline and shunting area. Drive system is divided into two groups, one is diesel electric locomotive (DC motor) type and the diesel locomotive (hydraulic) type. Especially, as customer’s specific requirements, we improve performance and extend durability period by upgrading product specifications.

Specifications

Model SIL-35 SIL-45 SIL-60(Hydraulic driving device) SIL-75(Hydraulic driving device) SIL-75(DC Motor Type) SIL-88(Hydraulic driving device)
 Tare Weight 35 ton 45 ton 60 ton 75 ton 75 ton 88 ton
 Max Speed 20~30 (km/h) 20 ~ 30 (km/h) 20 ~ 30 (km/h) 20 ~ 30 (km/h) 70 (km/h) 80 (km/h)
 Power Output 430PS 475PS 535PS 600PS 800PS 1,350PS
 Axle Load 8.75 ton 11.25 ton 15 ton 18.75 ton 18.75 ton 22 ton
 Axle Arrangement B or B-B B-B B-B B-B B-B B-B
 Hauling Capacity 600 TON 800 TON 1,100 TON 1,440 TON 1,440 TON 2,700 TON
 Overall Length 10,100 mm 10,100 mm 11,000 mm 13,710 mm 13,710 mm 14,500 mm
 Overall Width 2,900 mm 2,900 mm 3,040 mm 2,948 mm 3,000 mm 2,950 mm
 Overall Height 3,800 mm 3,800 mm 4,112 mm 4,330 mm 4,332 mm 4,250 mm
 Overall Diameter 860 mm 860 mm 860 mm 860 mm 860 mm 860 mm



General Specifications

This specifications applies Diesel Hydraulic locomotive’s manufacture, assembly, test, and inspection which is used to haul wagon.

  1. The General in design, manufacture, test and inspection, delivery, and so on is based on contract.
  2. Material, manufacture method, test, inspection and etc. that are used in manufacturing vehicles apply KS, JIS, AAR, UIC and etc. standard.
  3. The warranty of the delivered car based on this specifications is ensured for one year after the completion of the car delivery.

Main Parts

1. Diesel Engine

  • Quantity : 1 Set
  • Manufacturer and Model : CUMMINS / MTU / CAT

2. Hydrodynamic Torque Converter

  • Manufacturer : VOITH or HITACHI
  • Type : Power-Shift Transmission depending on Engine Power

3. Cardan shaft

Propeller shaft is device for connecting between power transmission device that transmitted the engine power to transmission, reduction gear, shaft and wheel consequently

4. Driver’s Cabin

Double Cabs at the ends or 1 cab in the middle. It is equipped with master driving control, air-conditioner, window brusher, sun visor, driver’s seat and rear-view mirror.

5. Generator

Operation by Engine connecting with belt, embedded regulator installed at the left side of Fly-Wheel

6. Remote control

Max. number of control commands 44 digital(24 via change-over contacts) or 36 digital(20 via change-over contacts) + 10 analogSpecifications
Antenna External, FL 30 or FL 70
(option : offset antenna with 5m cable and BNC connector)
EMS category
4 according to EN 954-1
(The EMS category of the radio control system depends on the respective transmitter) Frequency range 334-338MHz, 400 – 475 MHz1, 865 – 870 MHz, 902 – 928 MHz 1 Not all frequency ranges available
Channel increments
312,5 / 20 / 25 / 50 / 250 kHz



 DMU (Diesel Multiple Units)

The DMU is designed for adapting sub/urban transportaion. MC + M + MC is basic formation of one train set. MC car installs a driving cabin, a set of engine with hydraulic transmission(TM) and gen set for electricity. M car installs a set of engine with TM



Specifications

Description Specifications Description Specifications
 Max Speed 90 (km/h) Width 2.99 m
 Acceleration 0.38 m/s2 (0o/oo slope, normal load)
0.34 m/s2 (full load, up to min. 25km/h)		 Height 4,100 mm
 Deceleration Deceleration 1.0 m/s2(Emergency Length of vehicle 20800m
 Axle load 14 ton (empty) Length between bogies 14 m
 Braking Regenerative & Air Brake Length between axles 2.2 m
 APU 180 KVA/Mc Wheel diameter 860 mm



Train Configurations

Description Specifications Remarks
Train Type Diesel Hydraulic Multiple Unit
Formation MC + M + M + MC MCs install driving cabin
Car body Frame Mild Steel As per requirement
Driving cabin Operational equipment
Monitoring equipment (TMS)
Work convenience equipment
Tandem Drive
(MC-M-MC & MC-M-M-MC)
Bogie Frame Upper/lower Swing Bolster type
Wheelset Solid steel forged type
Suspension Primary : Coil spring
Secondary : Coil spring
Actuating equipment Diesel engine N14-R (CUMMINS) 354 KW at 2100RPM MC
Cooling system Compact roof mounted system
Power Convertor Torque Convertor Voith T211 re.4 (Input torque : 2200Nm) MC, M
Braking equipment Type Full pneumatic system
Brakes Service, Parking and Emergency
Couplers ABC Coupler Height from top of the rail according to standard.



Exterior
Tourist train unit is designed for looking around tourist attractions. It consists of TC1 (steam locomotive shaped) + Power generating car (tender) + T1 + T2 + TC2. Its exterior and specs are diverse from customer’s needs.

Specifications

Description Specifications Description Specifications
 Max. Design speed 120 km/h Width 2,825 mm
 Overall length 22,800 mm Height of car-body 3,815 mm
 Track gauge 1,000 / 1,067 / 1,435 / 1,676mm WheelDiameter 860 mm



Interior
Tourist train unit is equipped with different concepts of seats like VIP seat for president, family seats etc.

Sepcial Vehicles (self-propelled)

Track Inspection Vehicle

This vehicle is utilizing for the visual safety inspector in high speed by several camera system, inspecting that crack on the rail, clamp status and so on.

Ⓐ Diesel Engine

  • Manufacturer : Cummins Model : QSX 15
  • Rating Power : 600 HP / 2100 rpm

ⒷTransmission

  • Manufacturer : Hitachi-Nico Model : TDCN – 22 – 3001
  • Control method : TCU(Transmission control unit)

Ⓒ Cooling equipment

  • Hydraulic Motor

Ⓓ 1ST Propeller Shaft

  • Deflection Angle : Max. 15° Telescopic Length : Max. 140mm
  • Install Length : 2,042mm

Ⓔ 2nd Propeller Shaft

  • Deflection Angle : Max. 15° Telescopic Length : Max. 140mm
  • Install Length : 850mm

Ⓕ 1ST Reduction Gear

  • Gear Ratio : 36/18 x 45/36 = 2.5

Ⓖ 2nd Reduction Gear

B2S(ballasted to slab) Track Machine

In the construction work for concrete sleeper installation, this track machine is capable of loading and unloading concrete sleepers by using the crane equipped at the roof.

Specifications

Description Specifications
Tare Weight 40 ton
Load Weight 58 ton
Max Speed 120 (km/h)
Power Output 340PS
Axle Load 14.5 ton
Axle Arrangement B - B
Overall Length 15,780 mm
Overall Width 2,800 mm
Overall Height 4,150 mm
Wheel Diameter 860 mm

Motor Car

The motor car, which we produce, is mainly used for towing railroad construction equipment, transporting railroad construction material, loading & unloading work.

Specifications



Model SIM-15 SIM-25 SIM-35 SIM-45
Tare Weight 15 ton 25 ton 35 ton 45 ton
Max Speed 120 (km/h) 120 (km/h) 120 (km/h) 120 (km/h)
Power Output 290PS/2,200RPM 430PS/2,000RPM 430PS/2,000RPM 475PS/2,100RPM
Axle Load 7.5 ton 12.5 ton 7.58 ton 11.25 ton
Axle Arrangement B B B or B - B B or B - B
Hauling Capacity 130 TON 300 TON 300 TON 450 TON
Overall Length 6,570 mm 8,500 mm 9,750mm 10,550 mm
Overall Width 2,800 mm 2,800 mm 2,800 mm 2,800 mm
Overall Height 3,300mm 3,300mm 3,553 mm 3,792 mm
Wheel Diameter 860 mm 860 mm 860 mm 860 mm
Hydraulic Crane Order Order Order Order
